Thermal Insole

Thermal Insole for Extreme Cold Climate ( Patent Published vide application No 202011003190 )
  • This insole is for use in extremely cold climates as an insert for shoes of any type and size. The insole is intended to provide comfort up to a temperature of minus 25 C as experienced in high-altitude areas of India. The user of this insole will be able to carry out all daily activities like walking, climbing, mountaineering, skiing, etc, without discomfort.
  • The insole is molded to have the shape of a shoe and does not fold back/cause bunching while removing the shoe or during walking and does not have any wrinkles or folds.
Advantages
  • Improves the efficiency of troops operating in extremely cold climate.
  • Does not require any external input to maintain the body temperature, use bodies own temperature to maintain warmth.
Part 1
The Insole is as per specification published by DGQA and consists of the following layers :
Part 1
Layer 1
  • To provide comfort, warmth and having anti perspiration properties.

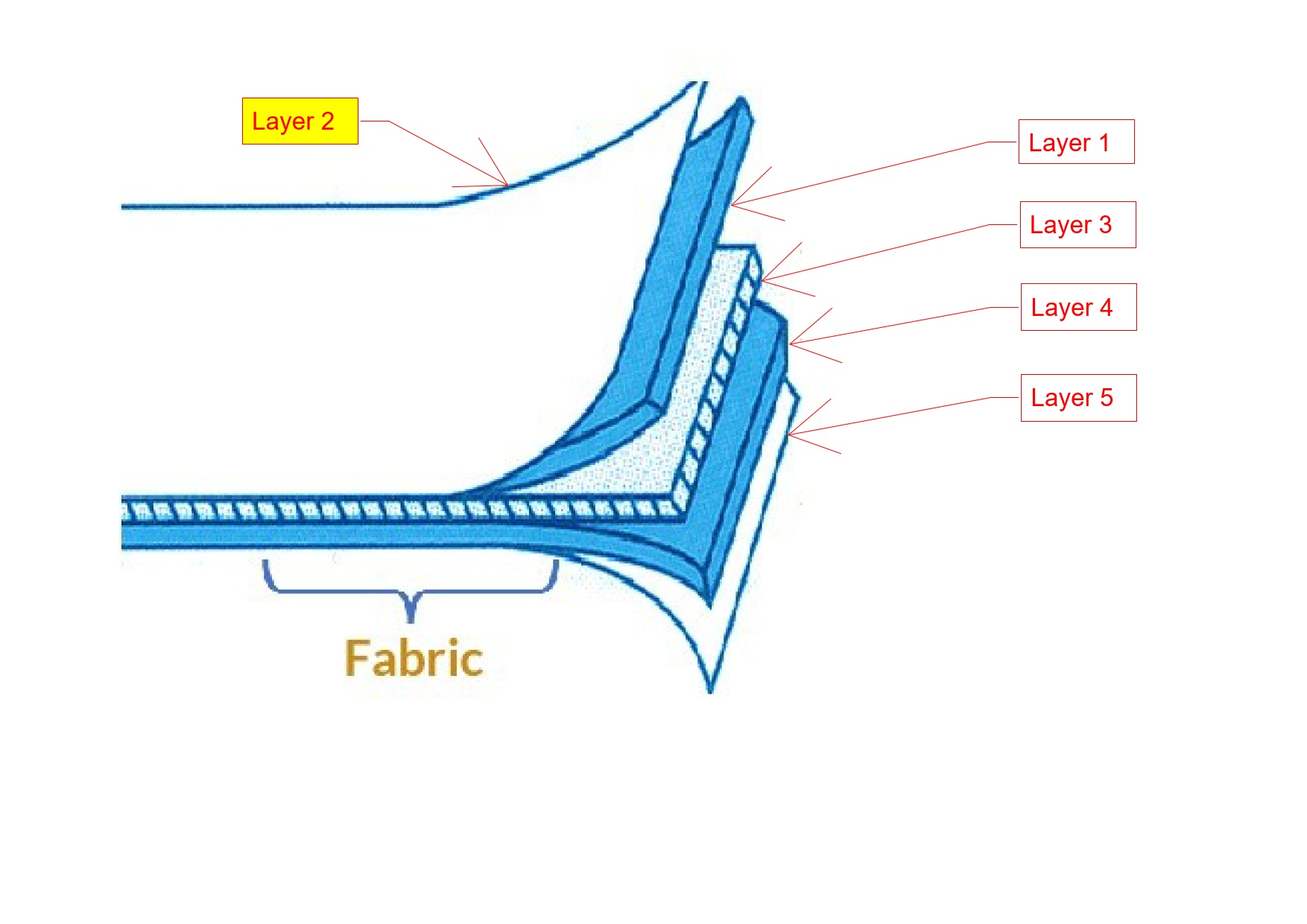

Part 2
Layer 2
  • To provide cushion and increase comfort.
Part 3
Layer 3
  • To provide additional warmth and comfort.
Part 4
Layer 4
  • Heat Shield consisting of a reflective film to trap heat within upper

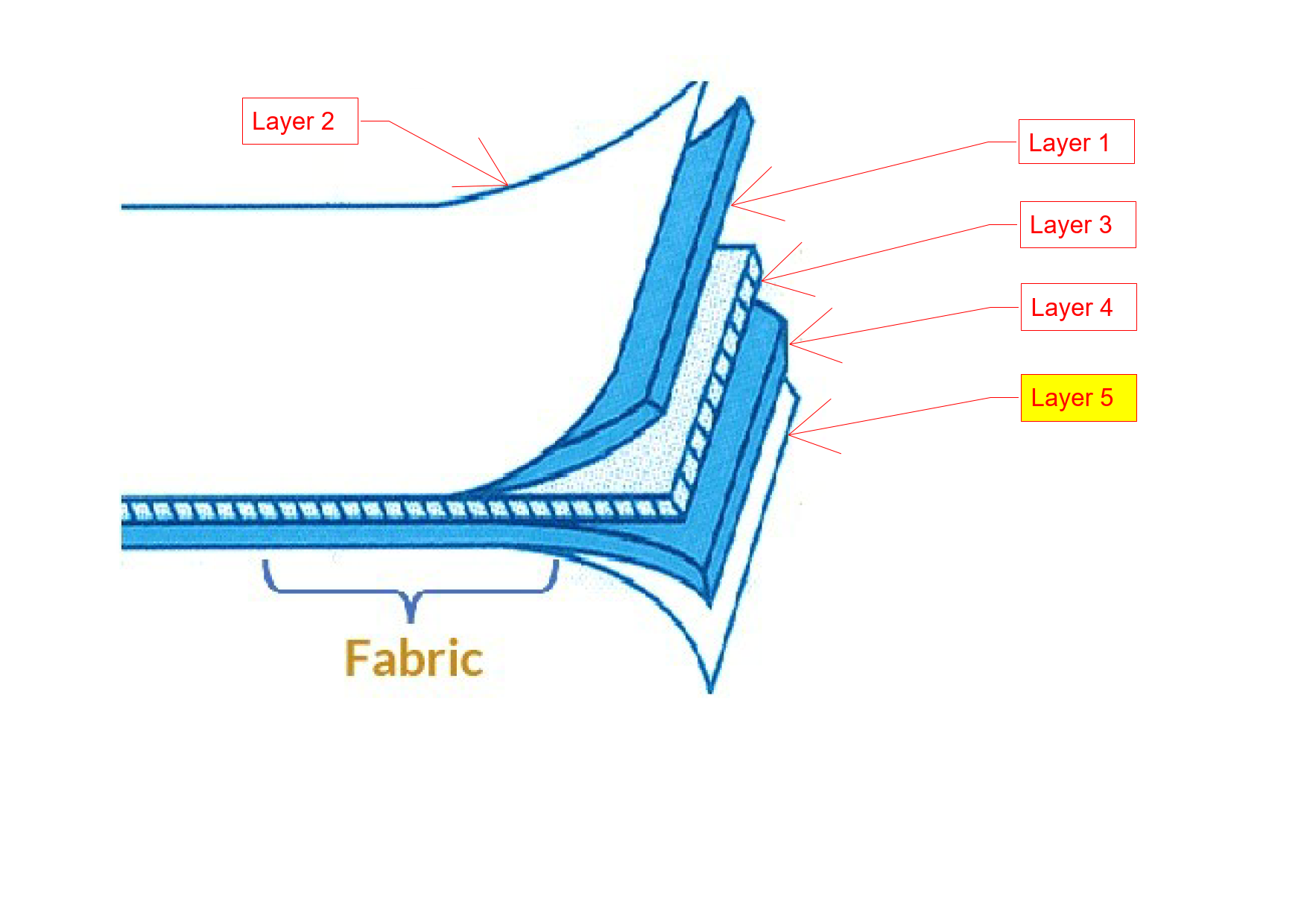

Part 5
Layer 5
  • To provide a medium to join these layers together by process of lamination with water resistance properties.
