Reflex Sight

TECHNICAL SPECIFICATIONS & FEATURES

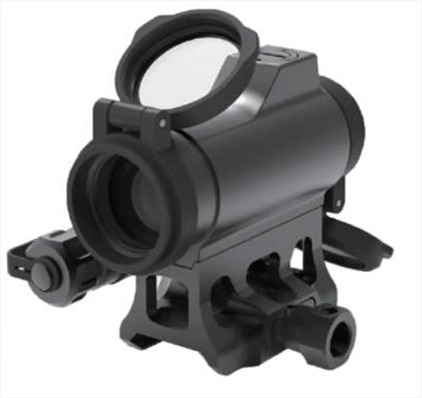

Part 1
EOD-DS36R
  • Rugged construction, aluminium 6061-T6 machined.
  • Light weight and IP 67 waterproof construction.
  • Mil-Std 1913 compatible.
  • 1x Magnification, 2MOA red aiming dot.
  • Manual brightness settings along with NV settings.
  • Low power LED coupled with AAA battery enables the sight to work for 8000 hours.
  • Windage/Elevation ranged for 90MOA setting, 1MOA per click resolution.

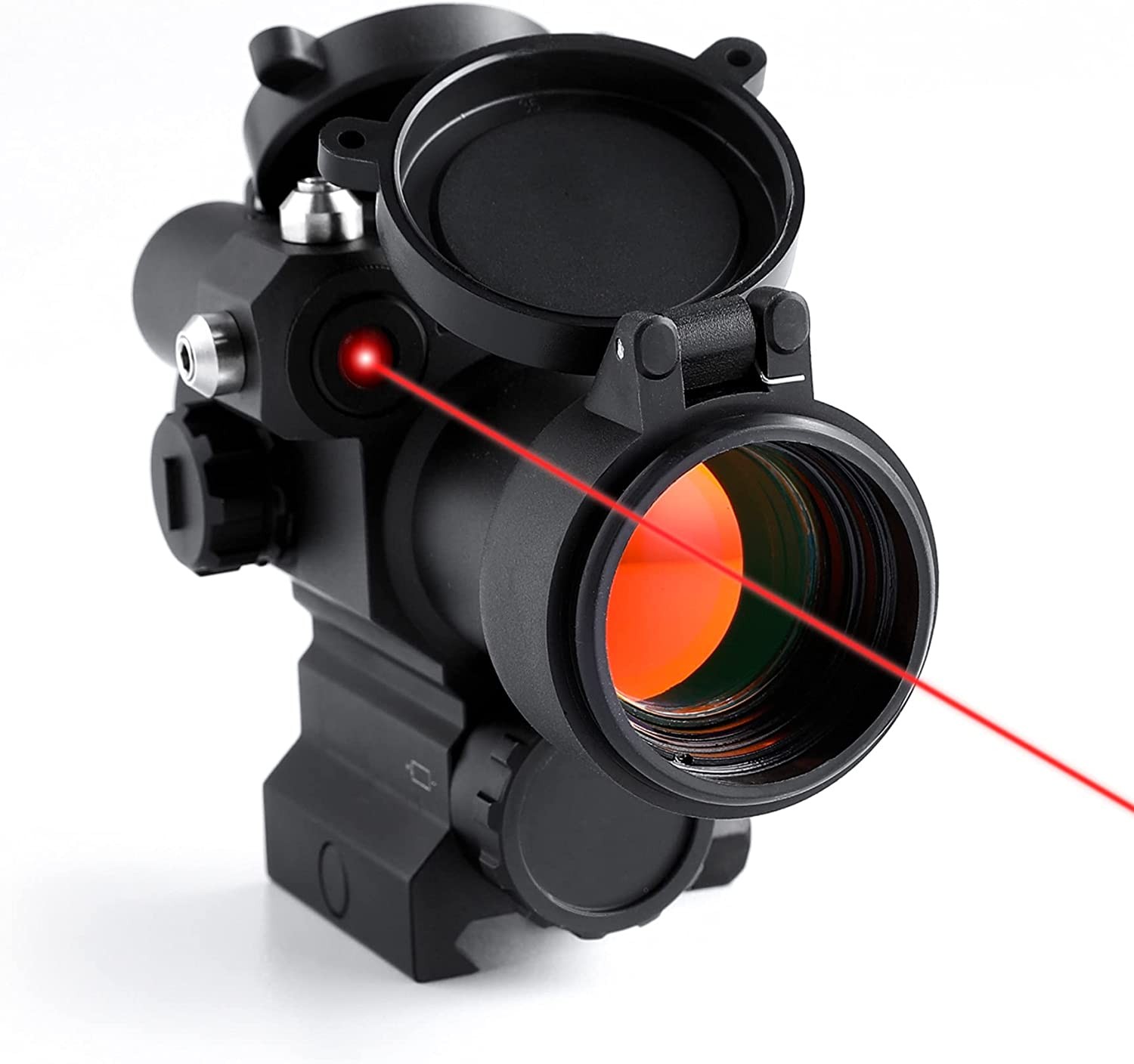

Part 2
EOD-DS36RL
  • Tactical red dot sight with inbuilt laser aim pointer.
  • Rugged construction, aluminium 6061-T6 machined.
  • Light weight and IP 67 waterproof construction.
  • Mil-Std 1913 compatible.
  • 1x Magnification, 2MOA red aiming dot.
  • Manual brightness settings along with NV settings.
  • Windage/Elevation ranged for 90MOA setting, 1MOA per click resolution.
  • Tactical red dot sight with inbuilt laser aim pointer.
  • Rugged construction, aluminum 6061-T6 machined.
  • Light weight and IP 67 waterproof construction.
  • Mil-Std 1913 compatible.
Part 2

Product Specifications

  • Dimensions: 90x55x65 mm
  • Weight: < 250gms
  • Objective Lens :20mm
  • Magnification :1X
  • Dot Size, Color :2MoA, Red
  • Parallax :<2MoA
  • Eye Relief : ∞
  • Battery: AA
  • Run Time: 1000 Hours
  • LASER Wavelength (Visible/IR): 650/800 nm
  • Temperature: -10°C to 55°C
