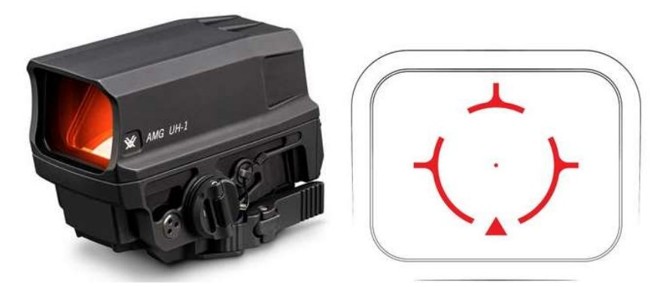

HOLOGRAPHIC SIGHT

GENERAL INFORMATION

  • Holographic Sight is a lightweight, non-magnifying, optical sight designed for close-to midrange engagements, employing holographic sighting technology for small to medium caliber weaponry. It utilizes holographic optics fabrication technology. It allows for fast target acquisition and engagement at short ranges while providing aiming capability out to 300 meters, equal to or better than iron sights.
  • The major combat advantage is extremely rapid reticle-on-target acquisition. As quickly as a target is identified, the holographic reticle can be superimposed on the target, it appears to project the holographic image of a reticle on the target plane.
  • The sight allows operators to maintain eye contact on the target and to place the holographic reticle onto the target without shifting focus. Operators can quickly acquire the target and reticle in the same focal plane for fast and accurate shot placement. The sight can be used as a bright open reticle image or a fine dot. The display window allows an undistorted and unrestricted view of the target.
  • The Sight offers extremely fast target acquisition in Close-Quarters Battle (CQB) using the large ring and aiming precision in longer range engagements (using the MOA Dot) without obscuring the target. Another advantage is the full field of view which allows the user better situational awareness. The HUD window eliminates blind spots and constricted/tunnel vision associated with scope sights.
  • The advantage is that it provides the operator superior shooting performance, rapid reticle-on-target acquisition, full field of view and accurate shot placement. This Sight can be naturally deployed by all levels of users, from novice to the most highly trained operator.
TECHNICAL SPECIFICATIONS & FEATURES
Part 1
Optical System
  • Projection method: No parallax Reverse Projection
  • Magnification: 1X
  • Eye Relief: Unlimited
  • Material: Optical solid glass
  • Dimensions: 30x23+/-1mm
  • Glass coating: Anti-glare; Antifogging
  • FOV: >15(°)
Part 1
Mechanical System
  • Elevation Adjustment: +40 to -40 MOA @ 0.5MOA
  • Windage Adjustment: +40 to -40 MOA @ 0.5MOA
  • Dimensions: 95x65x65 mm (±10%)
  • Weight: 260g (±10%)
  • Mount: Screw-lock Picatinny mount
Part 1
Electricals
  • Reticle: 68MOA circle with 1 MOA Dot
  • Projection: Red; Inverse Reverse (NV Mode)
  • Brightness Settings: 20 (Daytime) + 10 (NV)
  • Battery: CR123/RCR123
  • Battery Life: >500hours
  • Auto Shut-Off: 4 Hours
  • Low Battery Indicator: Reticle Flash
Part 1
Environmental Specifications
  • MIL-STD-810G
  • IP 68
  • Operating Temperature: -20ºC to +55 ºC
  • Storage Temperature: -30 ºC to +65 ºC
